Sailors Valentine Boxes – Styles

click on images to enlarge

54fc8d0f1a1739771c15a252_6%20inch%20Poplar%20No%20Glass%20Frame.jpg54fc8d151a1739771c15a253_6%20inch%20Poplar%20No%20Glass%20Frame%20-%20back.jpg
craft frame (no glass – unfinished)
“Good Value” (competitively Priced)

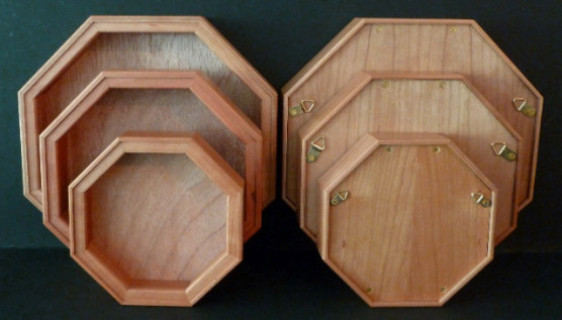

54ecff1caa70c2702274b6d7_Cherry%20-%20simple%20butt%20joints%20-%206in%2C%208in%2C%2010in320320.JPG
Front/Back Loading
54f0eeaf244f6b8d381b7e06_00000006-480.JPG54f0eefe55bdc08b3850521e_srs014-480-336x337.jpg
Front Loading
54ed00dc2783ae6f223e351f_00000008-%20480.JPG54f0ef24387d147e69fad764_00000004-_480~1.JPG
Hinged Top
Double
Rectangular Shadow Boxes
Traditional display cases for Sailors Valentines are typically octagonal is shape with all eight sides of equal length; however, a small number of antique Sailors Valentines were made in boxes with two or four of the eight sides longer than the others, resulting in an elongated octagon.  Most of the antique cases had a glass front that was held in place with eight pieces of removable molding.  The more finely crafted cases were sometimes made with a hinged lid held in position with a hook latch or a mortise lock.

Our solid wood display cases and display tables are crafted from a wide variety of domestic and imported woods. In addition to precision construction, we incorporate a superior type of joinery, mortise and tenon, in our tables and Premium Quality Boxes that virtually eliminates the possibility of glue joint failure and provides superior strength to resist breakage if the case is dropped.   Our Commercial Quality Boxes are similar to most boxes on the market today.  They feature the same precision construction as our Premium Quality Boxes, but utilize simple butt joints instead of mortise and tenon joinery for the sides of the box.

All of our Sailors Valentine boxes come with picture glass that is held in place with 8 pieces of wood molding.  Our value priced boxes have the glass molding recessed from the top edge of the box; whereas the other styles have the glass molding sanded flush with the top edge of the box.  In addition, the value priced boxes have back panels made of relatively low priced plywood which is fixed into the box with clear flexible caulk and brads.  All of our other styles of boxes utilize cabinet grade plywood back panels held in place with brass screws for front/back loading boxes, or inserted into dados cut into the sides of the box during assembly.

Mortise and Tenon Joinery

Mortise and tenon joinery is your best insurance against glue joint failure due to poor gluing technique or differential expansion and contraction between the back panel of a box and the sides of the box.  It may also keep the box intact if it is dropped or knocked off the wall by playful grandchildren.  I tested this type of joint construction by dropping four different boxes three times each from a height of about five feet so that a corner of the box hit the concrete floor of my workshop.  Not once did a joint break during these tests.  In contrast, the boxes I make with simple butt joints (the type of joinery typically used by SV box makers) may survive a fall onto a floor with a plush carpet, but they will most likely crack or break completely at one or more corner joints if dropped onto a hard surface.
